waterfall lighting 3d effect snow falling led christmas lights, dmx vertical tube outdoor christmas light

Products Details

Overview
Quick Details
Type:
LED Matrix Light
Input Voltage(V):
DC12V
Lamp Power(W):
24
Lamp Luminous Flux(lm):
1200
CRI (Ra>):
70
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
REIDZ
Model Number:
RZ-LXD-96PCS
Emitting Color:
RGB
Light Source:
LED
Control mode:
DMX512
LED Light Source:
SMD5050
Lamp Luminous Efficiency(lm/w):
50
Color Temperature(CCT):
RGB







Product description


Transparent diffuser, 0.5/1/1.5/2m, diameter is 30mm.
Music control, sound activated,
smd 5050 on double side, 3D effect with Madrix software

Product Features
1, Constant current diver is designed on the double side vertical tubes, which can contribute lots to protect lamp’s life tube.
2, Double sided light effects can be seen from 360 degree angles. Transparent tube make the light much clear and pure.
3,  Environment friendly, no harsh glare and buzzing noise, no flicker.

Applications
DJ, night club, television studio, theater and so on



Technical Parameters





ModelRZ-LXD1105RZ-LXD1110RZ-LXD1115RZ-LXD1120
Length500mm1000mm1500mm2000mm
Led qty32pcs smd505064pcs smd505096pcs smd5050128pcs smd5050
Pixel qty8pixels16pixels24pixels32pixels
Power16w24w35w40w
VoltageDC12VDC12VDC12VDC12V
ProtocolDMX512DMX512DMX512DMX512
Beam Angle360 degree360 degree360 degree360 degree
Capacity20pcs/universe10pcs/universe7pcs/universe5pcs/universe
Address settingManuallyManuallyManuallyManually
Temp-20-50-20-50-20-50-20-50
ProtectionIP65IP65IP65IP65









                     Install the led tube vertically, usually the distance between each light is 10cm-30cm

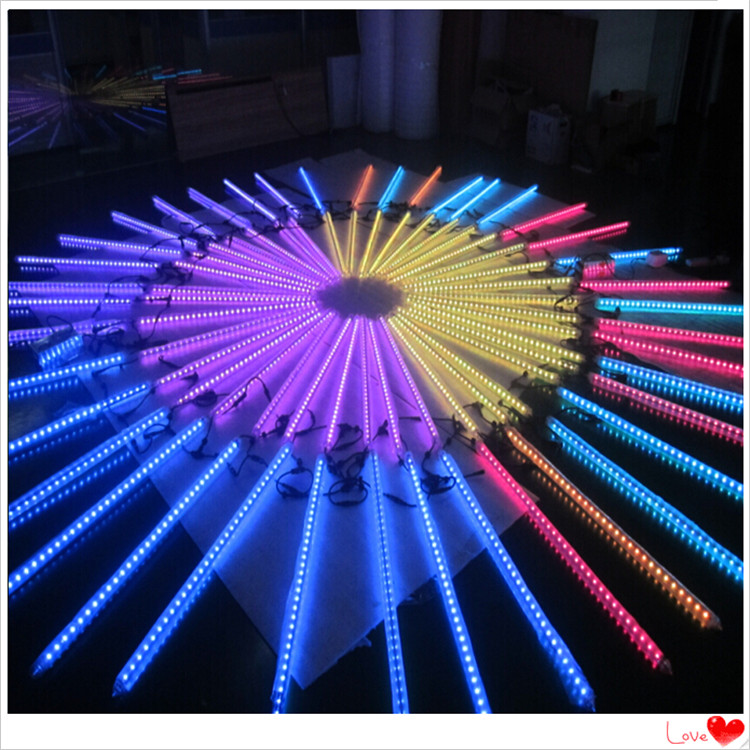

                                         Product Effect testing in factory





          We use DMX512 LED controller or Artnet controller for controlling the pixel tube lights
