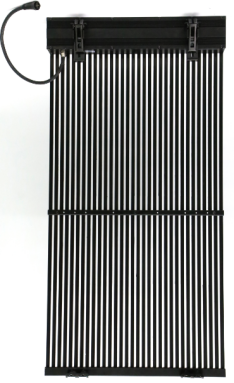

RZ-GSP-P7.8-15mm-S

Products Details

Model No RZ-GSP-P7.8-15mm-S
Pixel pitch (mm) Horizontal 15.625mm  Vertical 7.8125mm
Pixel types SMD2727
Resolutions(dot/㎡) 8192
Cabinet size(mm) 500(W) X 1000(H)
Cabinet resolutions(dots) 32(W) X 128(H)
Weight( kg/cabinet) 8.5
Weight (kg/sqm) 17
Cabinet thickness (cm) 6.3
Installation thickness (cm) 12.3(frame thickness is for 6cm)
Max power consumption (W/㎡) 700
Ave power consumption(W/㎡) 210
Brightness (cd/㎡) ≥6500cd
Grey level (bit) 14
Color temperature (K) 6500-9300k
Brightness adjustment (without hurting grey level)  0-255
Viewing angle (degree) Horizontal  ≥120°  vertical ≥120°
Best viewing distance 15-300
Frame rate (HZ) 60
Controller  Synchronous mapping
Driving method  Constant current,static
Power supply voltage 85-250
Lifespan 100000 hours
Heating dissipating  structure-enhanced,natural convection
Strip width 8.8
Strip material   aluminum 6061
Tranparancy 45%
Ip grade Double-side IP67
Working temp/Storage temp ’-35~ + 80°C /  -55 ~ + 120°C
Frame material 2.0mm cold-rolled galvanized steel sheet
Fireproof  quick installation  Tool-free
Maintenance speed 10S/unit
Maintenance method  Front side or Back side
