- Input Voltage(V):
- 24
- Lamp Power:
- 20
- Lamp Luminous Flux(lm):
- 22-24lm/led
- Working Temperature(℃):
- -30 - 55
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- PC
- Certification:
- CE, RoHS
- Place of Origin:
- Guangdong, China
- Model Number:
- RZ-LTD
- Application:
- LANDSCAPE, Bulding/tower/bridge
- Light Source:
- LED
- Product name:
- 2018 popular LED full color rgb dmx led digital tube for projects
- color:
- RGB full color
- Length:
- 0.5meter /1 meter
- led quantity:
- 24pcs/48pcs
- Pixel quantity:
- 4pixels/6pixels
- Maximum power:
- 6w/12w
- Cotroller model:
- DMX512
- Waterproof Rate:
- IP65
- Type:
- Led Linear Hi-Bay Light

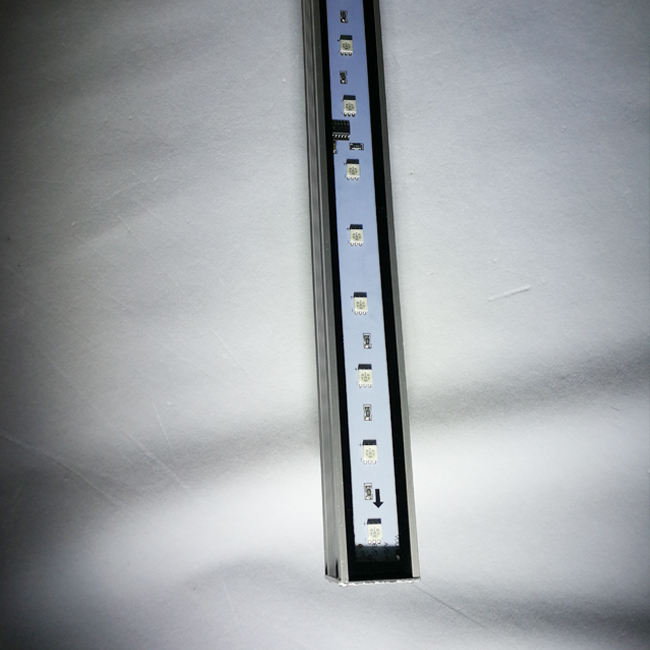

LED aluminum Linear bar light is one of the main lamps for outdoor lighting project. According to the display effect, it is also called LED line lamp. LED aluminum bar light is mainly used in the construction of the building, the outline of the bridge elevated, but also a number of arrangements and combinations together, according to the control display effect animation, water, text and other multi-color dynamic display effect. LED aluminum bar has better waterproof effect and oxidation resistance. It is popular for building facade decoration, bridge, tower, etc.
Model number | RZ-LTD-500mm | RZ-LTD-1000mm |
Dimension | 500*30*20mm | 1000*30*20mm |
LED | SMD RGB 5050 | SMD RGB 5050 |
LED QTY(pcs) | 24pcs | 48pcs |
View angle | 270 | 270 |
Power(w) | 6w | 12w |
Pixel | 4 Pixels | 8 Pixels |
Emitting Color | RGB Full Color | RGB Full Color |
Input Voltage | DC24V | DC24V |
Control system | Art-net/DVI+MADRIX/ SD+sound/ SD card | Art-net/DVI+MADRIX/ SD+sound/ SD card |
Operating temperature | -20 to 50 degree | -20 to 50 degree |
IP Degree | IP65 | IP65 |
We provide 50cm and 100cm length model for your choice
