New design dmx vertical tube 3D effect for night club decoration

Products Details

Overview
Quick Details
Type:
LED Matrix Light
Input Voltage(V):
DC12V
Lamp Power(W):
24
Lamp Luminous Flux(lm):
1200
CRI (Ra>):
70
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
REIDZ
Model Number:
RZ-LXD-32PCS
Emitting Color:
RGB
Light Source:
LED
Control mode:
DMX512
LED Light Source:
SMD5050
Lamp Luminous Efficiency(lm/w):
50
Color Temperature(CCT):
RGB





Product description

Transparent diffuser, 0.5/1/1.5/2m, diameter is 30mm. Music control, sound activated, smd 5050 on double side, 3D effect with Madrix software Product Features 1, Constant current diver is designed on the double side vertical tubes, which can contribute lots to protect lamp’s life tube. 2, Double sided light effects can be seen from 360 degree angles. Transparent tube make the light much clear and pure. 3,  Environment friendly, no harsh glare and buzzing noise, no flicker. Applications DJ, night club, television studio, theater and so on



Technical Parameters



Model RZ-LXD1105 RZ-LXD1110 RZ-LXD1115 RZ-LXD1120
Length 500mm 1000mm 1500mm 2000mm
Led qty 32pcs smd5050 64pcs smd5050 96pcs smd5050 128pcs smd5050
Pixel qty 8pixels 16pixels 24pixels 32pixels
Power 16w 24w 35w 40w
Voltage DC12V DC12V DC12V DC12V
Protocol DMX512 DMX512 DMX512 DMX512
Beam Angle 360 degree 360 degree 360 degree 360 degree
Capacity 20pcs/universe 10pcs/universe 7pcs/universe 5pcs/universe
Address setting Manually Manually Manually Manually
Temp -20-50 -20-50 -20-50 -20-50
Protection IP65 IP65 IP65 IP65





                     Install the led tube vertically, usually the distance between each light is 10cm-30cm

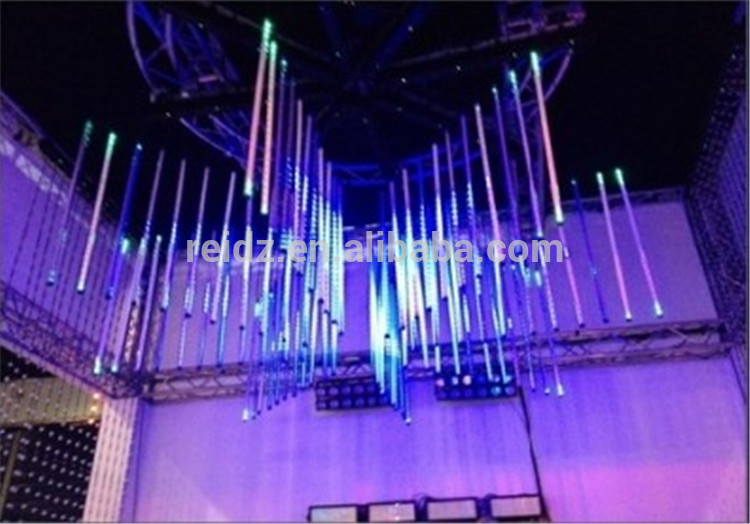

                                         Product Effect testing in factory





          We use DMX512 LED controller or Artnet controller for controlling the pixel tube lights
