Overview
Quick Details
- Type:
- LED Matrix Light
- Input Voltage(V):
- DC12V
- Lamp Power(W):
- 18
- Lamp Luminous Flux(lm):
- 30
- CRI (Ra>):
- 70
- Working Temperature(℃):
- 20 - 50
- Working Lifetime(Hour):
- 50000
- IP Rating:
- IP65
- Certification:
- CCC, CE, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- Reidz
- Emitting Color:
- rgb
- Application:
- nightclub
- Light Source:
- LED
- Warranty(Year):
- 1-year
- Size:
- diameter 30mm, length 500mm
- Protection level:
- IP42
- Max power:
- 18w/pc
- Light source:
- SMD5050 3 IN 1
- Coating:
- Double
- Material:
- Antiflaming Polycarbonate
- Shape:
- Straight
- Input Voltage:
- DC12V
- Color:
- RGB
Product description Transparent diffuser, length 0.5m/1m/1.5m/2m, diameter is 30mm. Music control, sound activated, SMD 5050 on double side, 3D effect with Madrix software Product Features 1, Constant current diver is designed on the double side vertical tubes, which can contribute lots to protect lamp’s life tube. 2, Double sided light effects can be seen from 360 degree angles. Transparent tube make the light much clear and pure. 3, Environment friendly, no harsh glare and buzzing noise, no flicker. Applications DJ, night club, television studio, theater and so on Technical Parameters | Model | RZ-LXD1105 | RZ-LXD1110 | RZ-LXD1115 | RZ-LXD1120 |
| Length | 500mm | 1000mm | 1500mm | 2000mm |
| Led qty | 32pcs smd5050 | 64pcs smd5050 | 96pcs smd5050 | 128pcs smd5050 |
| Pixel qty | 8pixels | 16pixels | 24pixels | 32pixels |
| Power | 16w | 24w | 35w | 40w |
| Voltage | DC12V | DC12V | DC12V | DC12V |
| Protocol | DMX512 | DMX512 | DMX512 | DMX512 |
| Beam Angle | 360 degree | 360 degree | 360 degree | 360 degree |
| Capacity | 20pcs/universe | 10pcs/universe | 7pcs/universe | 5pcs/universe |
| Address setting | Manually | Manually | Manually | Manually |
| Working Temperature | -70 | -70 | -70 | -70 |
| Protection | IP65 | IP65 | IP65 | IP65 |
Which length tube do you need for your project ? Most of our client use 50cm and 100cm length tube for their project.

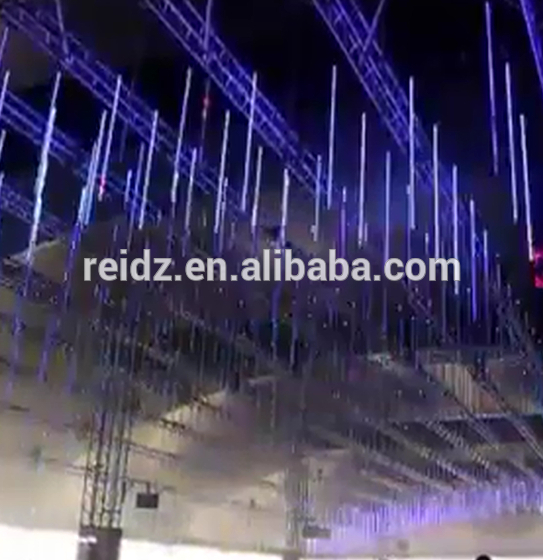

Install the led tube vertically, usually the distance between each light is 10cm-30cm
Product Effect testing and aging test in factory
Can use DMX512 LED controller or Artnet controller for controlling the pixel tube lights
| Item | Quantity tube / Carton | Packing size (CM ) | Gross Weight ( KG) |
| 50cm pixel tube | 50PCS / Carton | 57*41*23 | 14 |
| 100cm pixel tube | 50PCS / Carton | 117*41*23 | 28 |
| 150cm pixel tube | 50PCS / Carton | 167*41*23 | 42 |
| 200cm pixel tube | 50PCS / Carton | 217*41*23 | 56 |
