- Style:
- tube
- Place of Origin:
- Guangdong, China
- Brand Name:
- REIDZ
- Length:
- 500mm,1000mm,2000mm
- Holiday Name:
- Christmas
- Working Temperature(℃):
- -20-50
- Lamp Luminous Flux(lm):
- 540
- Working Lifetime(Hour):
- 50000
- Input Voltage(V):
- DC12V
- IP Rating:
- IP65
- Type:
- Led Tube Light
- Model:
- RZ-LXD-SMD5050
- Rated Power:
- 18W
- Voltage:
- DC12V
- Control system:
- DMX with Madrix 3D effect
- Size:
- diameter 30mm, size can be customized
- Pixel led:
- SMD5050
- Colour:
- RGB full colour
- Protection level:
- indoor or outdoor is ok
- View angle:
- 360degree

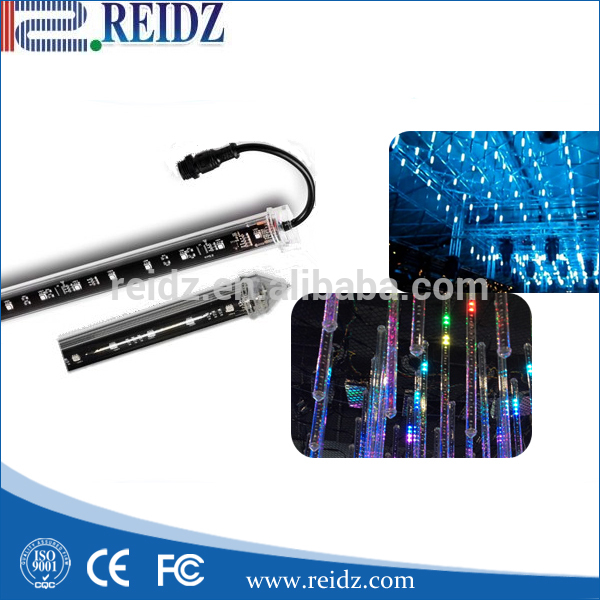

Product description
Transparent diffuser, 0.5/1/1.5/2m, diameter is 30mm.
Music control, sound activated,
smd 5050 on double side, 3D effect with Madrix software
Product Features
1, Constant current diver is designed on the double side vertical tubes, which can contribute lots to protect lamp’s life tube.
2, Double sided light effects can be seen from 360 degree angles. Transparent tube make the light much clear and pure.
3, Environment friendly, no harsh glare and buzzing noise, no flicker.
Applications
DJ, night club, television studio, theater and so on
Technical Parameters
| Model | RZ-LXD1105 | RZ-LXD1110 | RZ-LXD1115 | RZ-LXD1120 |
| Length | 500mm | 1000mm | 1500mm | 2000mm |
| Led qty | 32pcs smd5050 | 64pcs smd5050 | 96pcs smd5050 | 128pcs smd5050 |
| Pixel qty | 8pixels | 16pixels | 24pixels | 32pixels |
| Power | 16w | 24w | 35w | 40w |
| Voltage | DC12V | DC12V | DC12V | DC12V |
| Protocol | DMX512 | DMX512 | DMX512 | DMX512 |
| Beam Angle | 360 degree | 360 degree | 360 degree | 360 degree |
| Capacity | 20pcs/universe | 10pcs/universe | 7pcs/universe | 5pcs/universe |
| Address setting | Manually | Manually | Manually | Manually |
| Temp | -20-50 | -20-50 | -20-50 | -20-50 |
| Protection | IP65 | IP65 | IP65 | IP65 |
Install the led tube vertically, usually the distance between each light is 10cm-30cm
Product Effect testing in factory
We use DMX512 LED controller or Artnet controller for controlling the pixel tube lights
