Product description

Transparent diffuser, length 0.5m/1m/1.5m/2m, diameter is 30mm. Music control, sound activated, SMD 5050 on double side, 3D effect with Madrix software

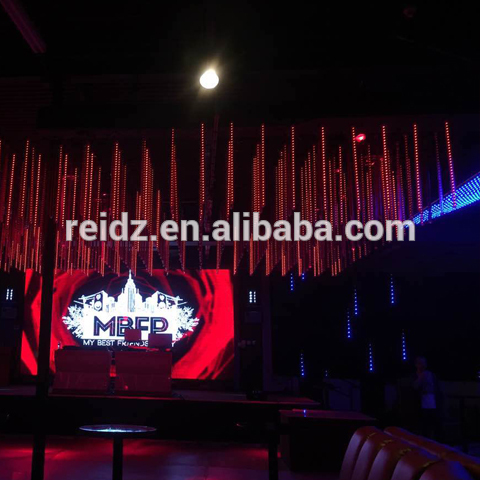

Product Features 1, Constant current diver is designed on the double side vertical tubes, which can contribute lots to protect lamp’s life tube. 2, Double sided light effects can be seen from 360 degree angles. Transparent tube make the light much clear and pure. 3,  Environment friendly, no harsh glare and buzzing noise, no flicker. Applications DJ, night club, television studio, theater and so on



Technical Parameters

Model	RZ-LXD1105	RZ-LXD1110	RZ-LXD1115	RZ-LXD1120
Length	500mm	1000mm	1500mm	2000mm
Led qty	32pcs smd5050	64pcs smd5050	96pcs smd5050	128pcs smd5050
Pixel qty	8pixels	16pixels	24pixels	32pixels
Power	16w	24w	35w	40w
Voltage	DC12V	DC12V	DC12V	DC12V
Protocol	DMX512	DMX512	DMX512	DMX512
Beam Angle	360 degree	360 degree	360 degree	360 degree
Capacity	20pcs/universe	10pcs/universe	7pcs/universe	5pcs/universe
Address setting	Manually	Manually	Manually	Manually
Working Temperature	-70	-70	-70	-70
Protection	IP65	IP65	IP65	IP65





                                           Which length tube do you need for your project ?

                                Most of our client use 50cm and 100cm length tube for their project.





                      Install the led tube vertically, usually the distance between each light is 10cm-30cm

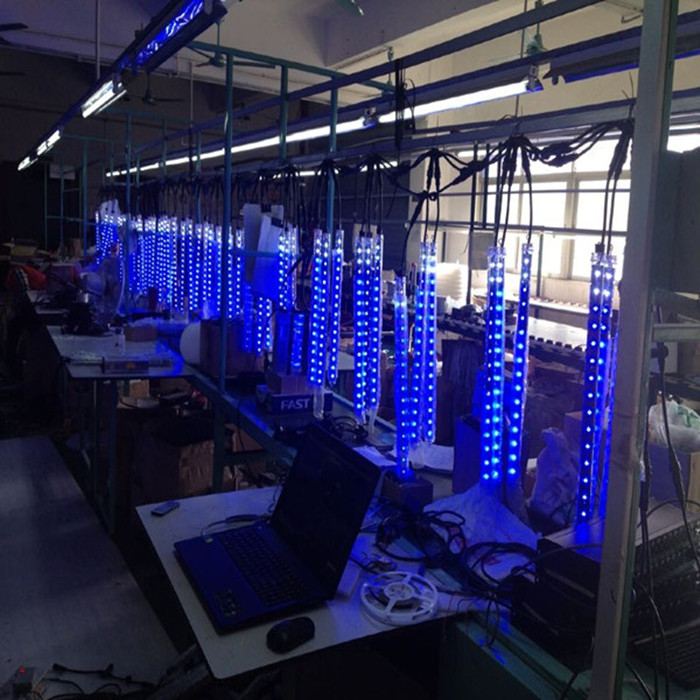

                                                        Product Effect testing and aging test in factory







        Can use DMX512 LED controller or Artnet controller for controlling the pixel tube lights





Item	Quantity tube / Carton	Packing size (CM )	Gross Weight ( KG)
50cm pixel tube	50PCS / Carton	57*41*23	14
100cm pixel tube	50PCS / Carton	117*41*23	28
150cm pixel tube	50PCS / Carton	167*41*23	42
200cm pixel tube	50PCS / Carton	217*41*23	56
