New LED rain drop light rgb dmx led pixel 3D vertical tube for DJ bar night club

Products Details

Overview
Quick Details
Type:
Projection Lights
Input Voltage(V):
12V
Lamp Power(W):
20
Working Temperature(℃):
-15 - 55
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
REIDZ
Emitting Color:
RGB
Light Source:
LED
Color Temperature(CCT):
rgb color for dmx 3d tube light
LED Light Source:
SMD5050
Lamp Luminous Efficiency(lm/w):
20
Color:
rgb
Length:
0.5m/1m/1.5m
Leds:
RGB SMD5050
Keyword:
RGB led tube light
Application:
Club Disco Dj Bar Stage Lighting
input votage:
DC 12V







Product description

Transparent diffuser, length 0.5m/1m/1.5m/2m, diameter is 30mm.
Music control, sound activated,
SMD 5050 on double side, 3D effect with Madrix software

Product Features
1, Constant current diver is designed on the double side vertical tubes, which can contribute lots to protect lamp’s life tube.
2, Double sided light effects can be seen from 360 degree angles. Transparent tube make the light much clear and pure.
3,  Environment friendly, no harsh glare and buzzing noise, no flicker.

Applications

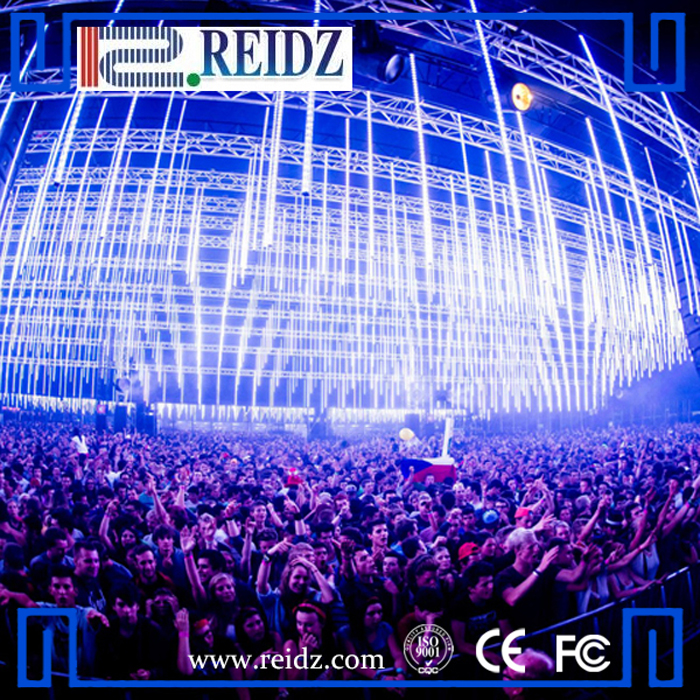

DJ, night club, television studio, theater and so on



Technical Parameters



ModelRZ-LXD1105RZ-LXD1110RZ-LXD1115RZ-LXD1120
Length500mm1000mm1500mm2000mm
Led qty32pcs smd505064pcs smd505096pcs smd5050128pcs smd5050
Pixel qty8pixels16pixels24pixels32pixels
Power16w24w35w40w
VoltageDC12VDC12VDC12VDC12V
ProtocolDMX512DMX512DMX512DMX512
Beam Angle360 degree360 degree360 degree360 degree
Capacity20pcs/universe10pcs/universe7pcs/universe5pcs/universe
Address settingManuallyManuallyManuallyManually
Working Temperature-70-70-70-70
ProtectionIP65IP65IP65IP65







                                           Which length tube do you need for your project ?

                                Most of our client use 50cm and 100cm length tube for their project.







                      Install the led tube vertically, usually the distance between each light is 10cm-30cm









                                                   Product Effect testing and aging test in factory











        Can use DMX512 LED controller or Artnet controller for controlling the pixel tube lights













Item Quantity tube / CartonPacking size (CM )Gross Weight ( KG)
50cm pixel tube50PCS / Carton57*41*2314
100cm pixel tube50PCS / Carton117*41*2328
150cm pixel tube 50PCS / Carton 167*41*2342
200cm pixel tube 50PCS / Carton 217*41*2356
