Overview
Quick Details
- Type:
- LED Bar Lights, flexible led pixel
- Input Voltage(V):
- 12V
- Lamp Power:
- 80W
- CRI (Ra>):
- 127777216
- Working Temperature(℃):
- -10 - 50
- Working Lifetime(Hour):
- 80000
- Lamp Body Material:
- ABS
- Certification:
- CE, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- Reidz
- Model Number:
- RZ-DGY-P125
- Light Source:
- LED
- Warranty:
- 2 years
- Pixel pitch:
- P125mm led pixel light
- Certificate:
- CE RoHS
- DMX control:
- ball, SMD5050, 30mm diameter
- DVI control:
- square, DIP, 50*50*50mm
- Use:
- Nightclub, KTV, bar, disco,etc.
- Colour:
- RGB full colour
- IP:
- IP65
- Control system:
- DVI/DMX/PC syn and SD card
- Item Type:
- Light Strips
- Color Temperature(CCT):
- 5000-8000
- LED Light Source:
- RGB
- Emitting Color:
- RGB
Product Description

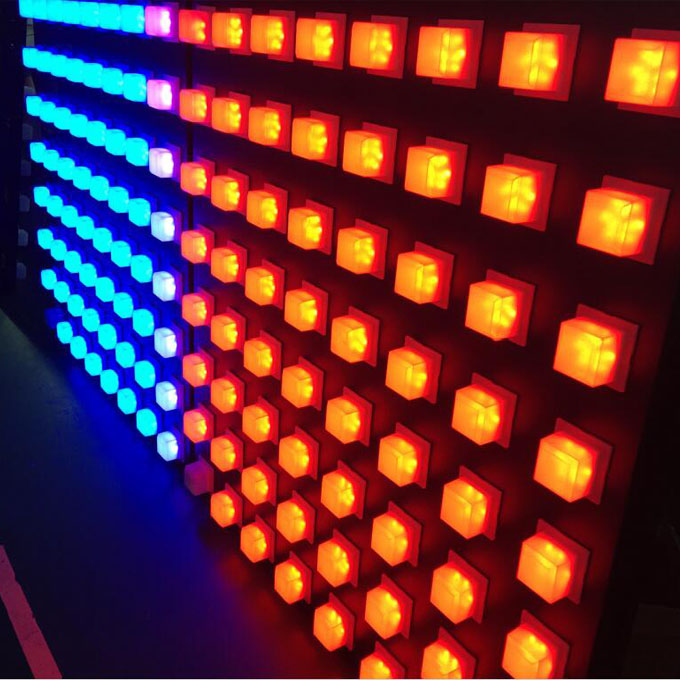

Features of rgb led pixel light for nightclub:
1. led point light | |
Pixel pitch | P125 |
Pixel composition | 6R,3G,3B |
6R,3G,3B | R 626-628,G 518-520,B 466-468 |
Outline dimention(mm) | 50 * 50 * 50 |
Outline material | pc |
Weight | 100g/pc |
Protection grades | IP65 |
Working temperature(ºC) | -10~+50 |
Humidity(RH) | Up to 95 |
Stored temperature (ºC) | -30~+70 |
Power consumption (pcs) | 1.2W |
Pixel wall | |
Pixels Pitch(mm) | 125 |
quantities in 1S.Q.M | 8(L)* 8 (H) |
2.Packaging | |
Packing Way | 200pc/carton |
Packing box material | Carton |
Packing box size (mm) | 1000 * 500 * 300 |
Weight of 1carton with 200pcs | 20kg |
3.electricity parameter | |
Pixel density(dots/M2) | 64 |
White Balance Brightness(cd/m2) | Max 600 Average ≥400 |
Color temperature(K) | 5000—8000 (choice by user) |
Brightness Adjusted | 100 grade by software, or by Auto-optic induced. |
View Angel | Horizontal 160° Vertical160° |
Best viewing distance(m) | 30-1000 |
Communication distance(m) | Communication distance(m) |
LED driving method | Constant driving current |
Gray Grades | 256 levels for each color |
Display Color | 127777216 |
Refresh Frequency (Hz) | ≥400 |
Picture display method | Dots to dots display synchronized with CRT |
Signal interface | DVI |
Screen Lifetime(hours) | ≥100,000 |
Maintance way | Back-maintained, modules displaced |
Switch power supply | Switch power supply |
Power Consumption (W/m2 ) | Max 80, Average ≥55 |
Packaging & Shipping
Package of rgb led pixel light:
Our Services
CE RoHS certificate, 2 years warranty, Customized is ok for rgb led pixel light for nightclub.
Company Information
We are a professional manufacturer of led decorative products for nightclub,disco, bar, KTV,etc. stage background decoration in China for near 8 years.
FAQ
1.Is it used indoor or outdoor? -Indoor or outdoor is ok. 2.What is the warranty? -2 years warranty.
