- Type:
- LED Modules, led pixel module light
- Chip Material:
- DIP
- Emitting Color:
- Tri-Color(Red-Blue-Green)
- Luminous Intensity:
- RGB
- Luminous Flux(lm):
- 120lm
- Optical Attenuation(%):
- 12
- Power:
- 76.8
- Power Dissipation:
- Max 80, Average ≥55
- Viewing Angle(°):
- 360
- Color Rendering Index(Ra):
- 12
- Color Temperature:
- RGB
- Operating Temperature(℃):
- -10 - 50
- Storage Temperature(℃):
- -30 - 70
- Place of Origin:
- Guangdong, China
- Brand Name:
- Reidz
- Certification:
- CE
- Colour:
- RGB full colour for pixel light
- Pixel pitch:
- 7leds led pixel module
- Certificate:
- CE RoHS
- Control system:
- DVI/DMX/PC syn and SD card
- Waterproof IP:
- IP65
- DMX control:
- ball, SMD5050, 30mm diameter
- DVI control:
- square, DIP, 50*50*50mm
- Use:
- Night club,KTV,bar,disco,etc. decoration
- Warranty:
- 2 years
CE RoHS DVI/DMX Waterproof Module Point Light Source RGB Pixel Led

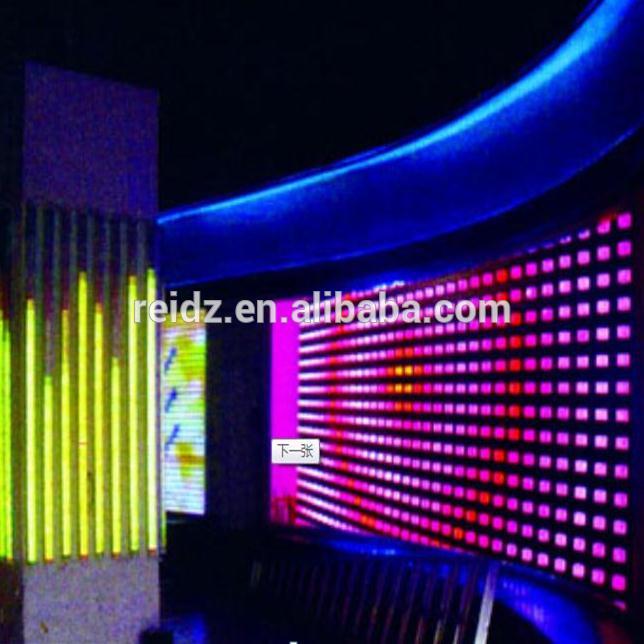

We call this led light as LED pixel light,the square housing dimension is W66*L66*H45mm , it has a small PCB with SMD5050 LEDs inside, the LED lighting color is RGB full color, you can use DMX led controller to control it, it also can work with Artnet controller and Madrix software. For this led pixel light, we provide 3pcs LEDs, 6pcs LEDs and 9pcs LEDs version for your option. The led pixel lights can be installed on wall or ceiling with a panel, just like it as the attached photos. You can only buy the led pixel light, you also can buy the pixel lights with our aluminum panel. This led pixel matrix light is widely used for night club, disco, bar, Casino, Mall lighting decoration project.
| Item No. | RZ-DGY3103-F | RZ-DGY3106-F | RZ-DGY3109-F |
| Housing Dimension | W66*L66*H45mm | W66*L66*H45mm | W66*L66*H45mm |
| Quantity of LEDs | 3pcs SMD5050 | 6pcs SMD5050 | 9pcs SMD5050 |
| Max Power(W) | 0.6 W | 1.2W | 1.8W |
| Working Voltage(V) | DC12V | DC24V | DC12V |
| Emitting Angle(Dgree) | 120 | 120 | 120 |
| Housing Color | Milk white | Milk white | Milk white |
| Housing Material | PC plastic | PC plastic | PC plastic |
| IP Grade | IP65 | IP65 | IP65 |
| Lighting Color | RGB | RGB | RGB |
| Gray Levels | 256 | 256 | 256 |
| Control Mode | DMX512/SPI | DMX512/SPI | DMX512/SPI |
