2016 new Disco club bar led lighting design

Products Details

Overview
Quick Details
Type:
Matrix Light
Input Voltage(V):
DC12
Lamp Power(W):
24
Lamp Luminous Flux(lm):
520
CRI (Ra>):
80
Working Temperature(℃):
15 - 55
Working Lifetime(Hour):
50000
IP Rating:
IP44
Certification:
CE, RoHS
Place of Origin:
Guangdong, China
Brand Name:
REIDZ
Emitting Color:
RGB
Light Source:
LED
LED Source:
SMD 5050 3in1
Dimension:
D30*L500MM/ 1000MM
Max Power:
18W
Color:
full color RGB
Material:
Antiflaming PC
Input voltage:
DC12V
Brightness:
520LM
Product name:
disco lighting
Operation mode:
DMX Control Mode
Voltage:
110-240V/50-60HZ
Color Temperature(CCT):
RGB
LED Light Source:
SMD 5050 3in1
Lamp Luminous Efficiency(lm/w):
22





Product description

Transparent diffuser, length 0.5m/1m/1.5m/2m, diameter is 30mm. Music control, sound activated, SMD 5050 on double side, 3D effect with Madrix software

Product Features 1, Constant current diver is designed on the double side vertical tubes, which can contribute lots to protect lamp’s life tube. 2, Double sided light effects can be seen from 360 degree angles. Transparent tube make the light much clear and pure. 3,  Environment friendly, no harsh glare and buzzing noise, no flicker. Applications DJ, night club, television studio, theater and so on



Technical Parameters

Model RZ-LXD1105 RZ-LXD1110 RZ-LXD1115 RZ-LXD1120
Length 500mm 1000mm 1500mm 2000mm
Led qty 32pcs smd5050 64pcs smd5050 96pcs smd5050 128pcs smd5050
Pixel qty 8pixels 16pixels 24pixels 32pixels
Power 16w 24w 35w 40w
Voltage DC12V DC12V DC12V DC12V
Protocol DMX512 DMX512 DMX512 DMX512
Beam Angle 360 degree 360 degree 360 degree 360 degree
Capacity 20pcs/universe 10pcs/universe 7pcs/universe 5pcs/universe
Address setting Manually Manually Manually Manually
Working Temperature -70 -70 -70 -70
Protection IP65 IP65 IP65 IP65





                                           Which length tube do you need for your project ?

                                Most of our client use 50cm and 100cm length tube for their project.

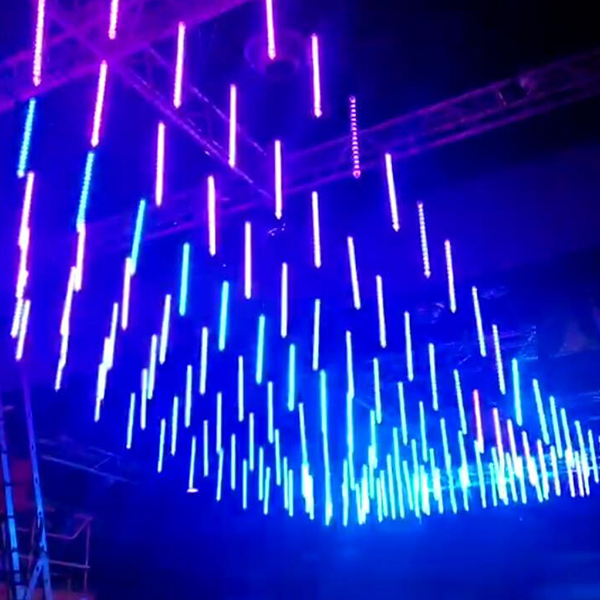

                      Install the led tube vertically, usually the distance between each light is 10cm-30cm



                                                      Product Effect testing and aging test in factory







        Can use DMX512 LED controller or Artnet controller for controlling the pixel tube lights





Item  Quantity tube / Carton Packing size (CM ) Gross Weight ( KG)
50cm pixel tube 50PCS / Carton 57*41*23 14
100cm pixel tube 50PCS / Carton 117*41*23 28
150cm pixel tube  50PCS / Carton  167*41*23 42
200cm pixel tube  50PCS / Carton  217*41*23 56
